Single Row Full Complement Cylindrical Roller Bearings

Single row Full Complement Cylindrical Roller Bearing

Single row full complement cylindrical roller bearing has 2 types of structures: NCF type and NJG type.

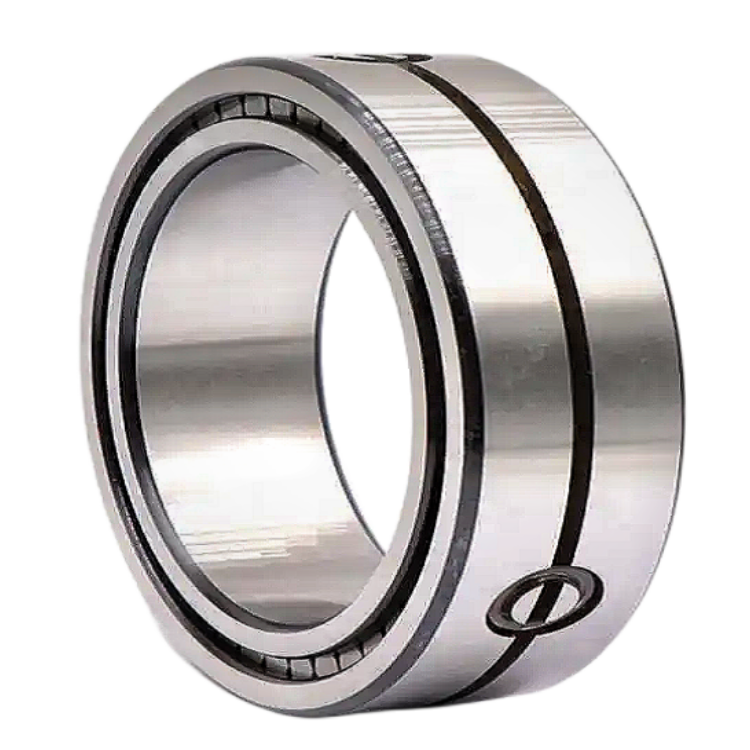

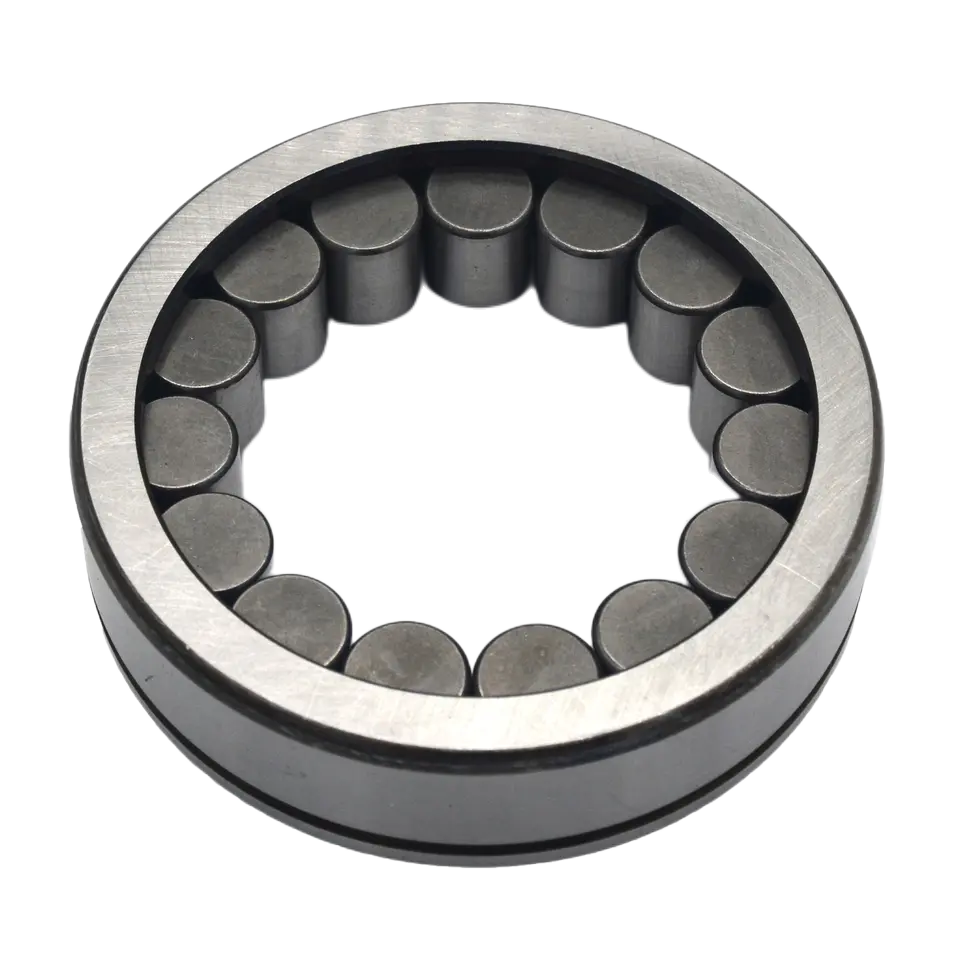

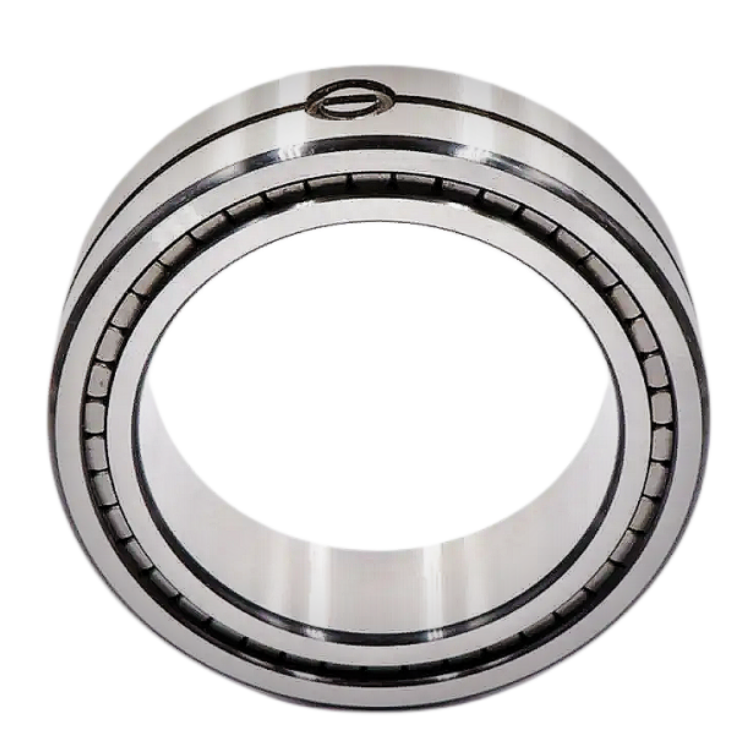

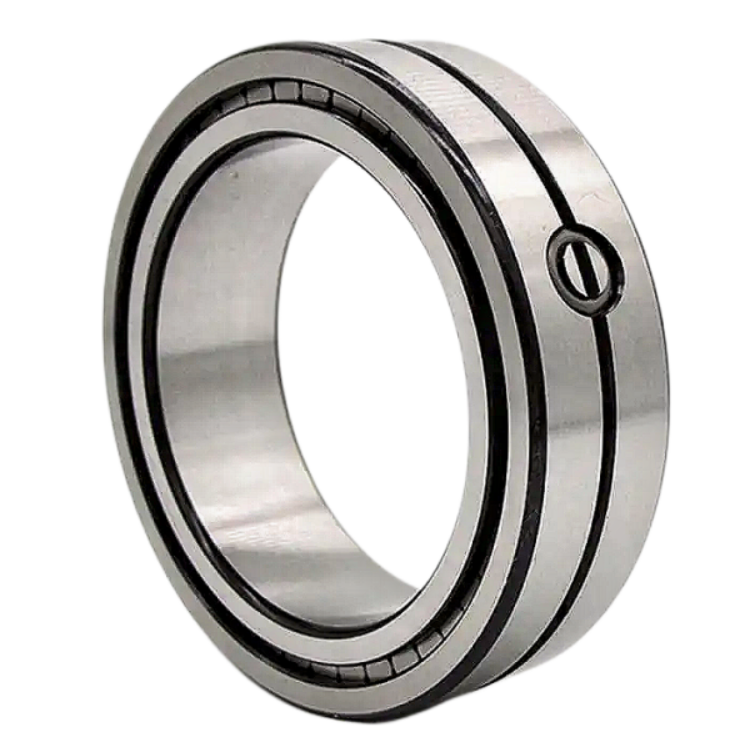

NCF type full complement cylindrical roller bearings have one inner ring with two fixed flanges and an outer ring with just one fixed flange. On the other side of the outer ring, there is a retaining ring inserted, which keeps all bearing components together. This retaining ring serves solely for handling purposes and may not be exposed to axial load.

NJG type full complement cylindrical roller bearings have one inner ring with only one fixed flange and one outer ring with two fixed flanges. This type is mainly designed for applications with extremely high radial load at low rotational speed. In contrast to other full complement cylindrical roller bearings, NJG type bearings have a self- retaining set of rollers by standard. Thus, the rollers cannot fall out even if the inner ring is removed. This simplifies the assembly significantly.

More....

To ensurethe production of top-notch bearings, WSA Bearing Company adheres strictly to S0 9001 qualitystandards at every stage of manufacturing. We go the extra mile to guarantee product excellenceby implementing rigorous control measures for all incoming raw materials, with each materialhaving its composition archived and documented. Only qualified products proceed to the nextproduction process, which includes thorough inspections using cutting-edge equipment suchas metallographic testing devices, Oxford roughness profile analvzers, fluorescent flaw detectorsuniversal microscopes,and coordinate measuring machines(CMM).

WSA bearing line includes cylindrical roller bearings (single row, double row, and four-row), deep groove ball bearings, tapered roller bearings, spherical roller and ball bearings, angular contact ball bearings (single row and double row), thrust roller and ball bearings, all kinds of split bearings and non-standard bearings, widely used in industries such as aerospace, military, railroads, commercial vehicles, industrial manufacturing, ships, machine tools, metallurgical plants, motors, and agriculture. We are dedicated to providing our customers with the highest quality products and services. Our team of experts is constantly innovating and developing to ensure that we remain at the forefront of the industry. Contact us today to learn more about our exceptional products and how we can assist you with your bearing needs.
