NNC4836 CV Both single row and double row products available in same size range.
Standard designs use NCF, NNCF nomenclature.
Full complement construction, no cage included.
High capacity, but operating speed may be an issue requiring close application scrutiny.
Assembly outer ring design provides significant internal axial float capability

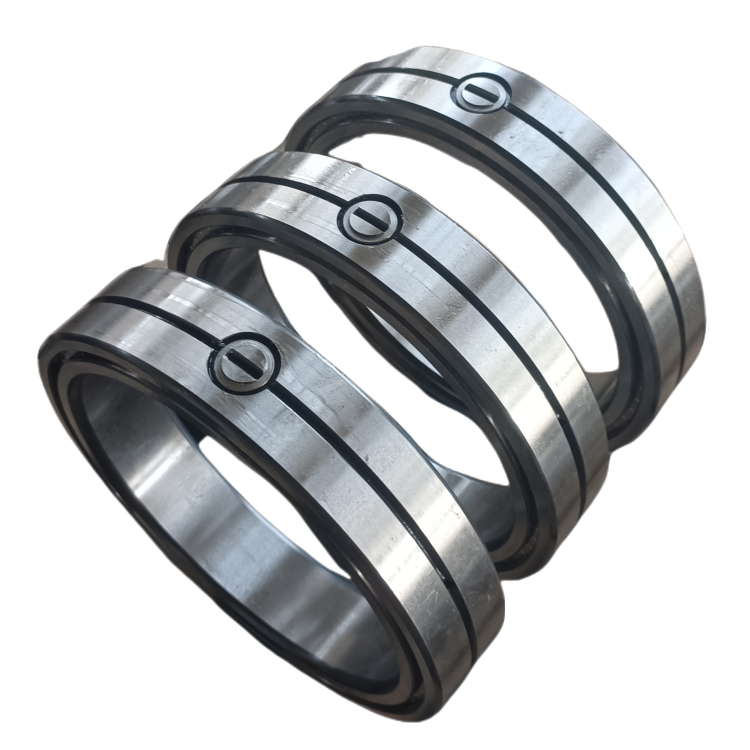

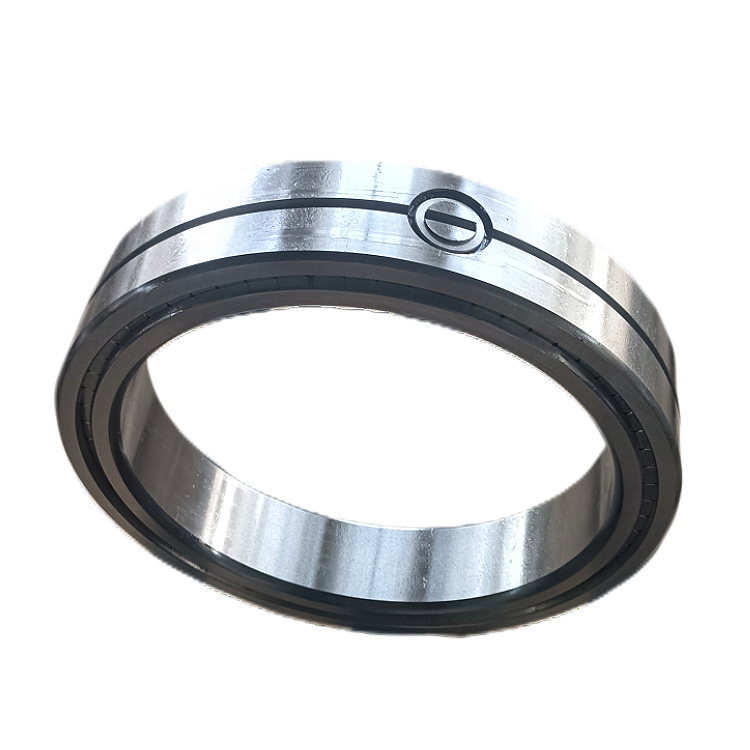

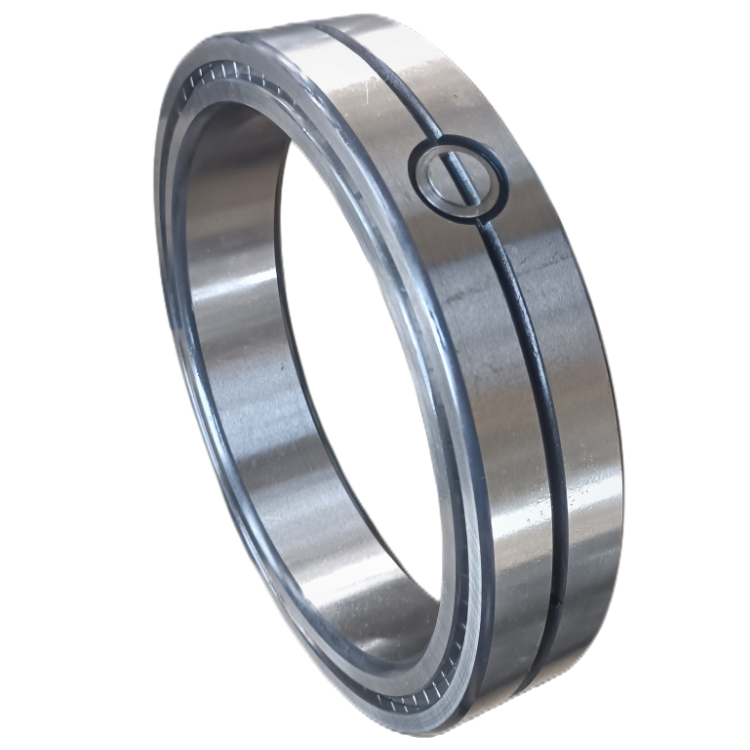

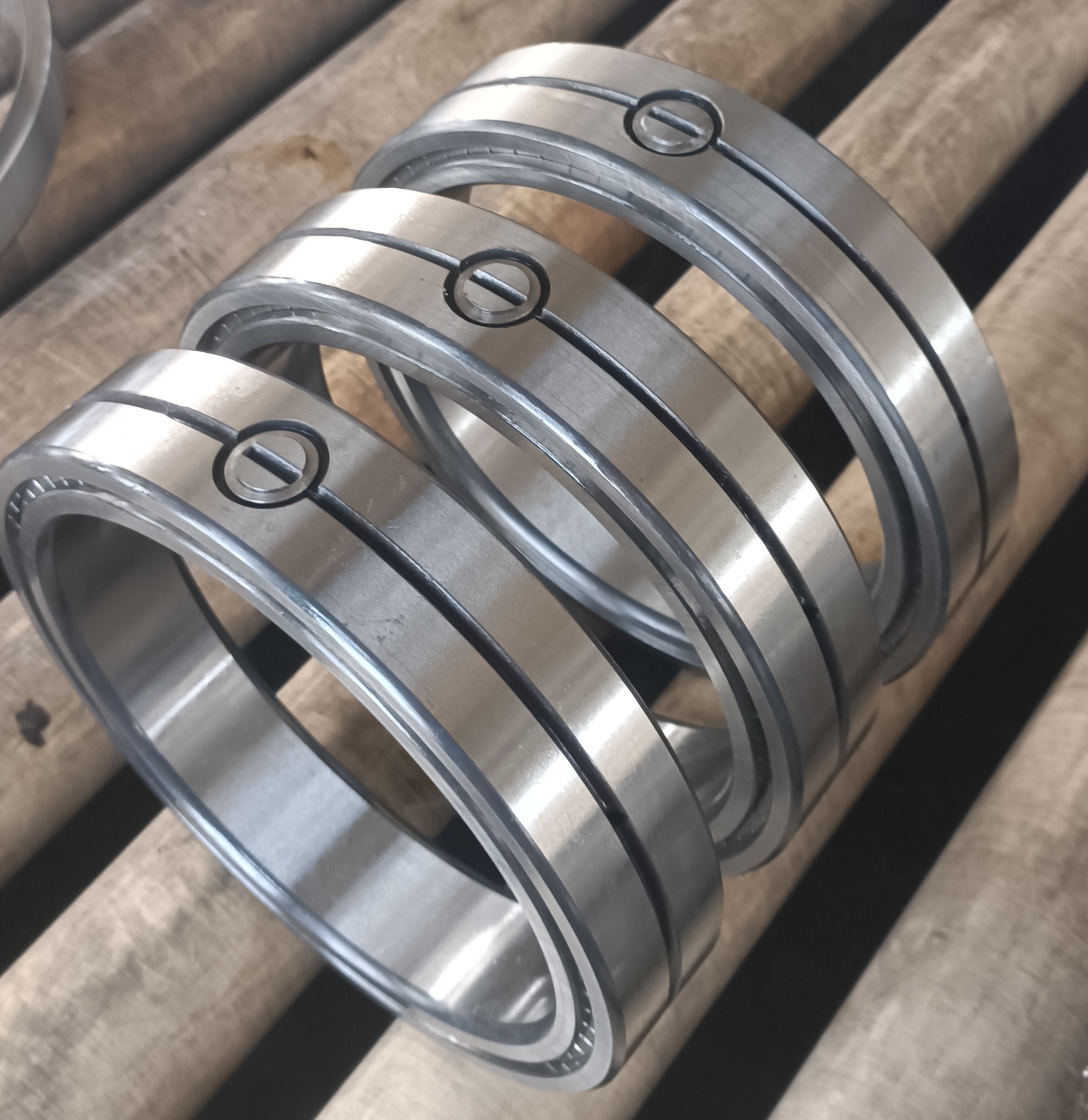

Double row Full Complement Cylindrical Roller Bearing
| Product Number | NNC 4836 CV (Also Called SL 02 4836) |
| Bore diameter | 180 mm |
| Outside diameter | 225 mm |
| Width | 45 mm |
| Basic dynamic load rating | 297 kN |
| Basic static load rating | 695 kN |
| Fatigue load limit | 69.5 kN |
| Reference speed | 1200 r/min |
| Limiting speed | 1500 r/min |
| Mass | 4.3 kg |
| Shoulder diameter of inner ring | 200 mm |
| Shoulder diameter of outer ring | 209 mm |
Double row full complement cylindrical roller bearings are all supplied with a lubrication groove with holes in the outer ring, which enables full lubrication access into the rolling space of each row of cylindrical rollers. The inner ring of the NNC, NNCL, and NNCF design has three guiding flanges to ensure the guiding accuracy of cylindrical rollers. They differentiate by the number of guiding flanges and snap rings in the outer ring. These components stop the rolling elements from falling out. Double row full complement cylindrical roller bearings are available as non-locating, semi-locating, and locating bearings.
|
|
|
|
| NNC Design | NNCF Design | NNCL Design | NNF (Sealed Design) |
More....
To ensurethe production of top-notch bearings, WSA Bearing Company adheres strictly to S0 9001 qualitystandards at every stage of manufacturing. We go the extra mile to guarantee product excellenceby implementing rigorous control measures for all incoming raw materials, with each materialhaving its composition archived and documented. Only qualified products proceed to the nextproduction process, which includes thorough inspections using cutting-edge equipment suchas metallographic testing devices, Oxford roughness profile analvzers, fluorescent flaw detectorsuniversal microscopes,and coordinate measuring machines(CMM).
WSA bearing line includes cylindrical roller bearings (single row, double row, and four-row), deep groove ball bearings, tapered roller bearings, spherical roller and ball bearings, angular contact ball bearings (single row and double row), thrust roller and ball bearings, all kinds of split bearings and non-standard bearings, widely used in industries such as aerospace, military, railroads, commercial vehicles, industrial manufacturing, ships, machine tools, metallurgical plants, motors, and agriculture. We are dedicated to providing our customers with the highest quality products and services. Our team of experts is constantly innovating and developing to ensure that we remain at the forefront of the industry. Contact us today to learn more about our exceptional products and how we can assist you with your bearing needs.
