NCF2932 CV, Black, Single row full complement, full complement single row cylindrical bearings, NCF29 series, NCF30 series, NJG23 series, cageless series, good quality, highest radial forces, high radial rigidity, high radial load capacity.

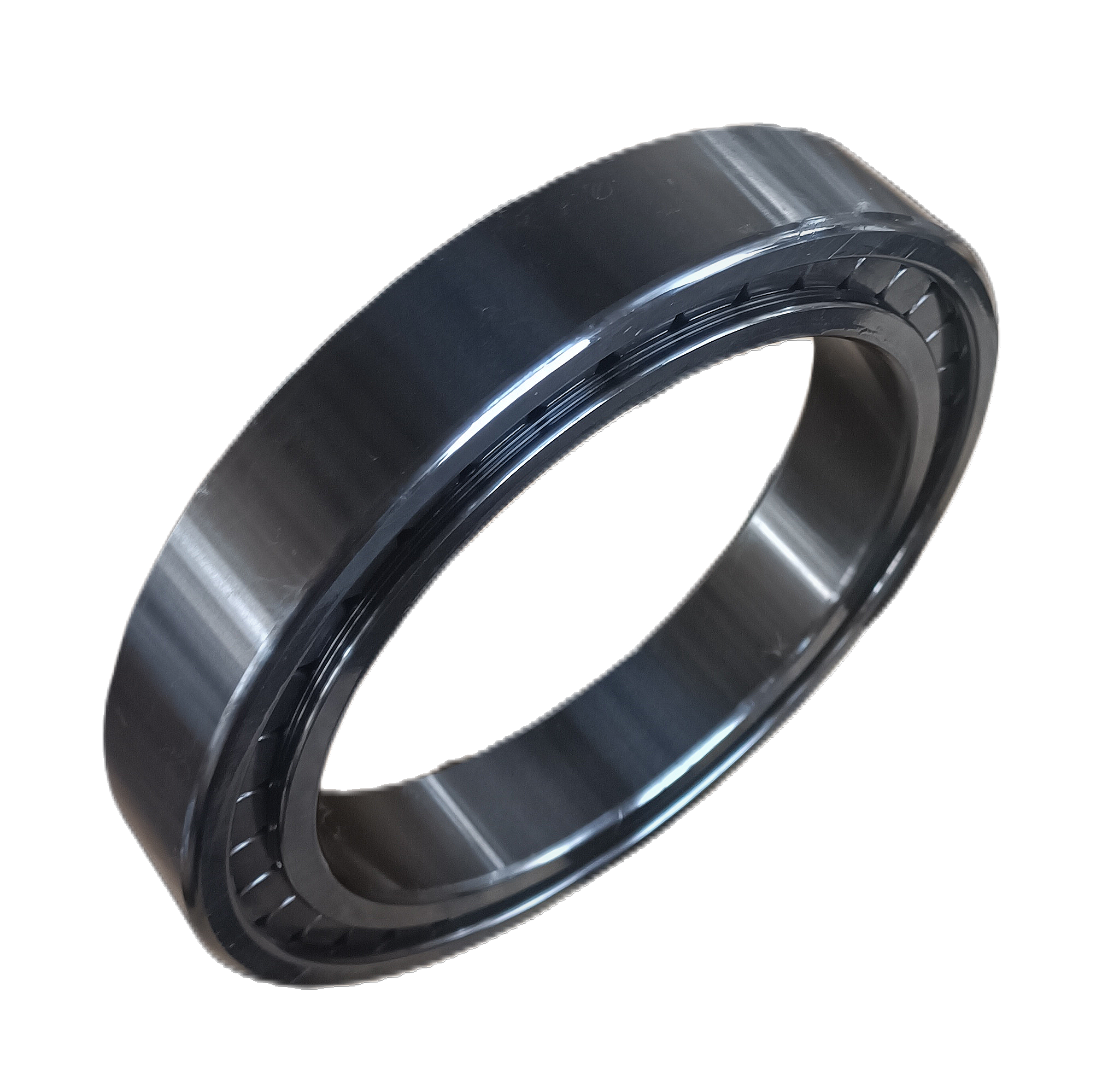

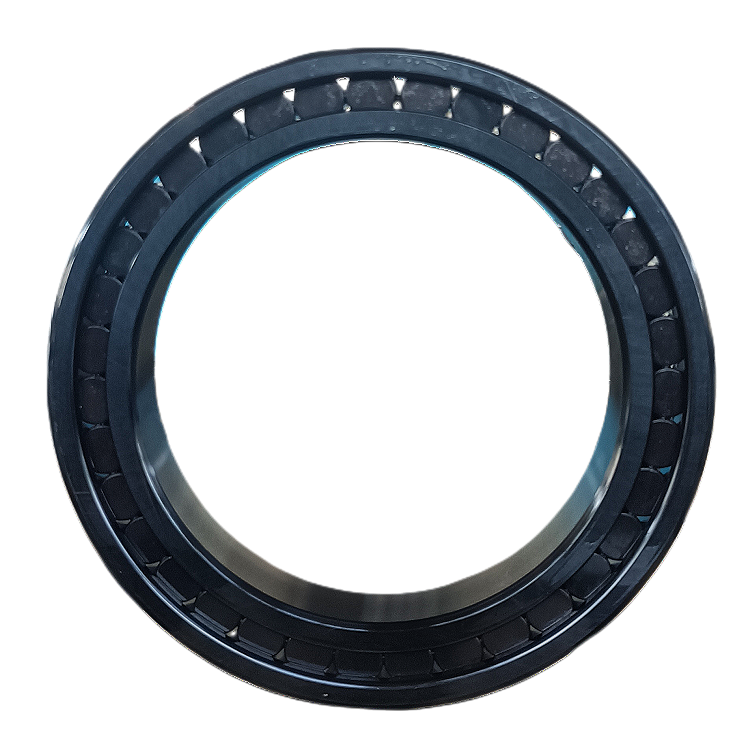

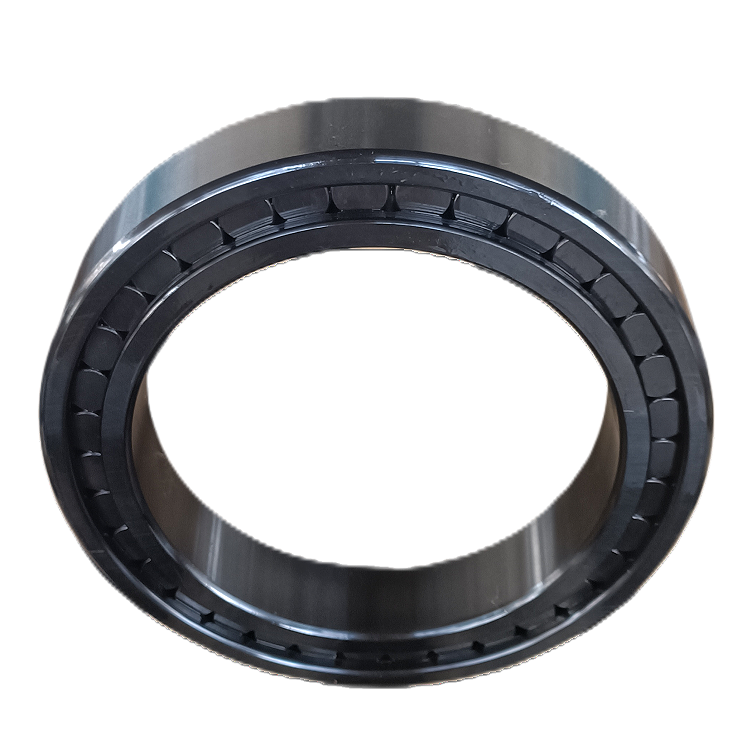

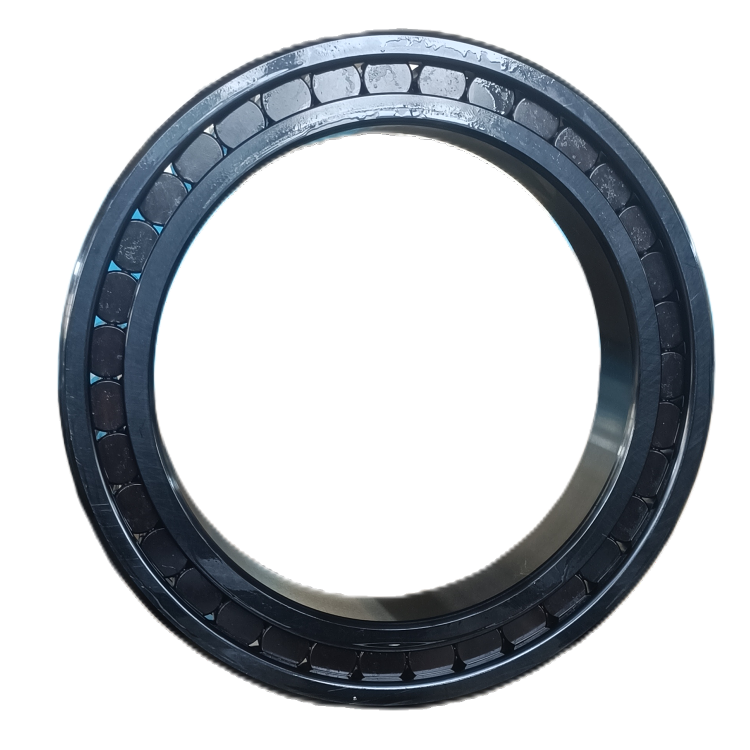

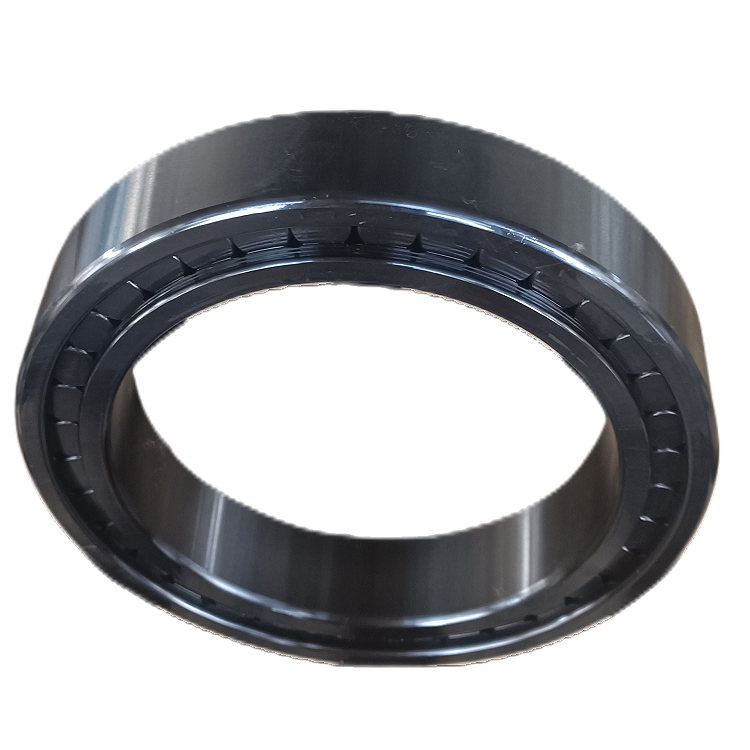

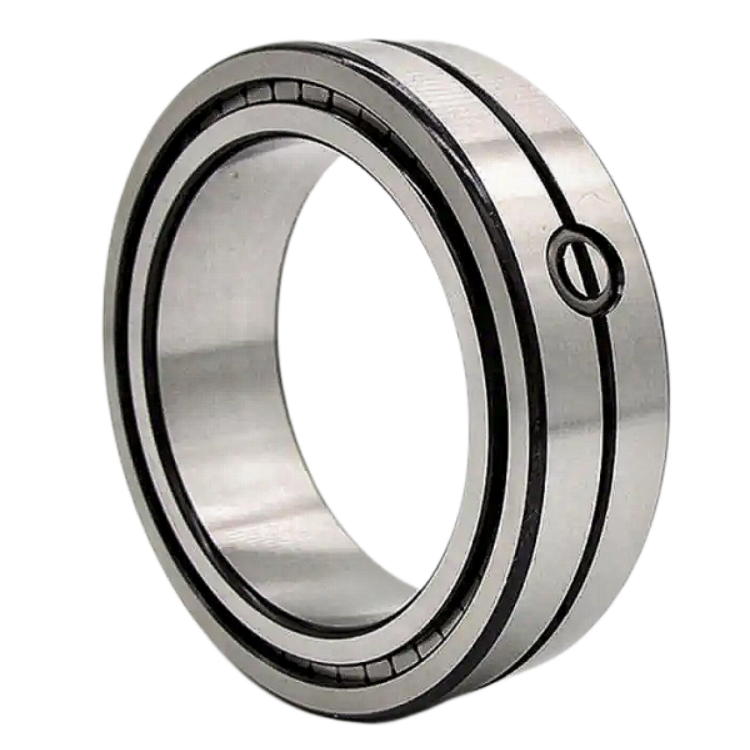

Single row Full Complement Cylindrical Roller Bearing NCF2930 CV P5
| Part Number | NCF 2932 CV (Also called SL182932 ) P5 |
| Bore Diameter(d) | 160 mm |
| Outside Diameter(D) | 220 mm |
| Width(B) | 36 mm |
| Cr | 303 KN(Basic dynamic load rating) |
| C0r | 530 KN(Basic static load rating) |
| Pur | 58.5 KN(Fatigue load limit) |
| Reference Speed | 1300 r/min |
| Limiting Speed | 1600 r/min |
| Weight | 4 kg |
Single row full complement cylindrical roller bearing has 2 types of structures: NCF type and NJG type.
NCF type full complement cylindrical roller bearings have one inner ring with two fixed flanges and an outer ring with just one fixed flange. On the other side of the outer ring, there is a retaining ring inserted, which keeps all bearing components together. This retaining ring serves solely for handling purposes and may not be exposed to axial load.
NJG type full complement cylindrical roller bearings have one inner ring with only one fixed flange and one outer ring with two fixed flanges. This type is mainly designed for applications with extremely high radial load at low rotational speed. In contrast to other full complement cylindrical roller bearings, NJG type bearings have a self- retaining set of rollers by standard. Thus, the rollers cannot fall out even if the inner ring is removed. This simplifies the assembly significantly.
|
|
NCF... SL18... | NJF... SL19... |
| - Single outer ring with one flange; - Outer ring located with a snap ring; - Locating bearing. | - Single outer ring with two flanges; - Inner ring with one flange and one side free; - Semi locating bearing. |
More....
