 Thrust Ball Bearings

WSA Thrust Ball Bearings are composed of a "washer-like" bearing ring with raceway grooves for the balls and are classified into flat seats or aligning seats - depending on the shape of the outer ring seat. Designed to handle thrust loads while operating at high speeds, these ball bearings are able to sustain axial loads but not radial loads.

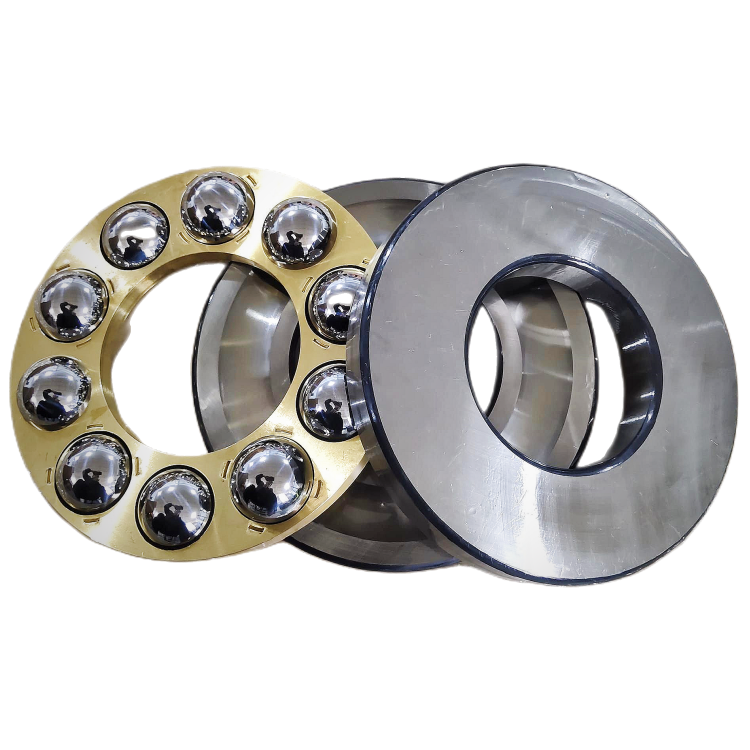

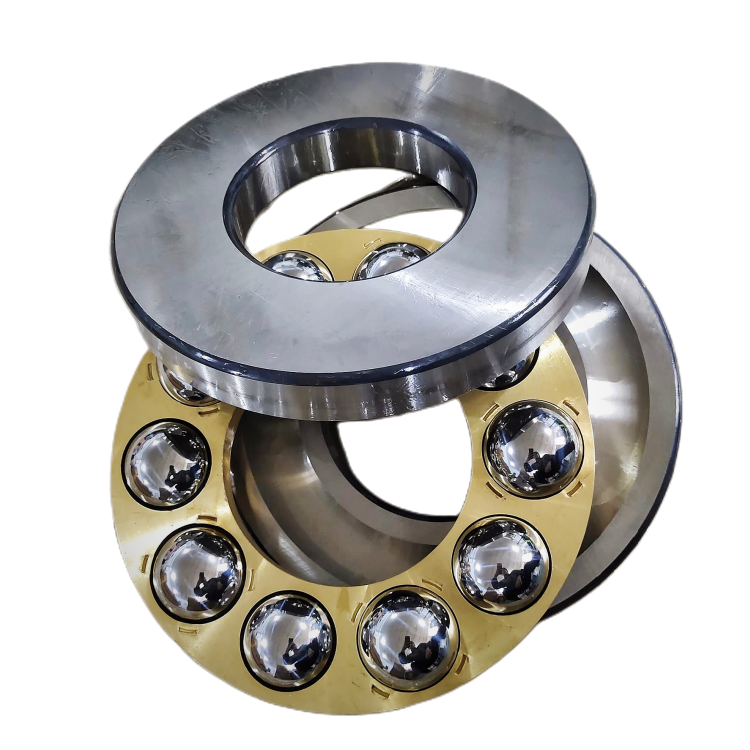

WSA's Thrust Ball Bearings are available in two designs:  single direction and double direction.  The single direction design comprises two rings, referred to as shaft and housing washers and a single ball and cage assembly. The double direction design, on the other hand, comprises three washers and two ball and cage assemblies. The ball and cage assemblies of the double direction type are separated by the shaft washer.

With flat seat face 51100，51200，51300，51400	With spherical seat face 53200，53300，53400	With aligning seat washer 53200U，53300U，53400U

Product Features and Benefits:

Available in two designs:  single direction and double direction.

To accommodate initial misalignments in an assembly both design are available with spherical aligning seats or aligning seat washers.

High quality Steel - Ultra clean steel to extend bearing life by up to 80%.

Advanced Grease Technology - WSA lubricants that can extend grease life and performance.

High Grade Balls - Quiet and smooth operation even at high speed.

Optional seating rings take initial misalignment. WSA's range of Thrust Ball Bearings include: angular contact thrust ball bearing, single direction thrust ball bearings, double direction thrust ball bearings.

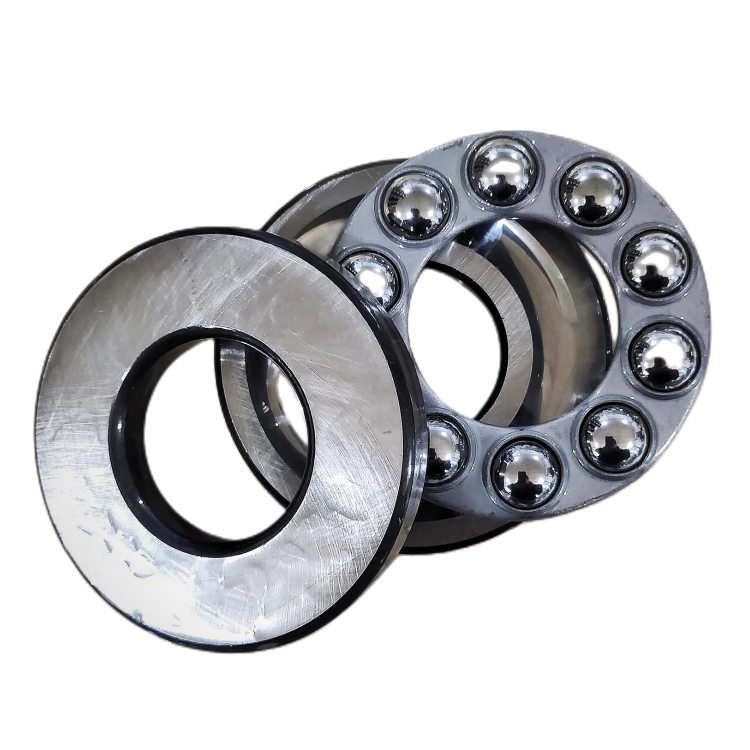

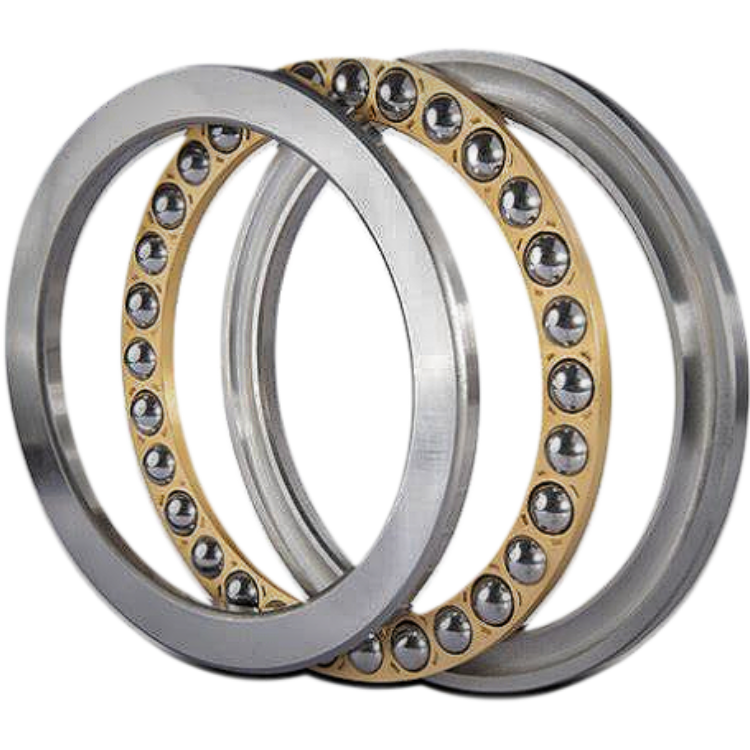

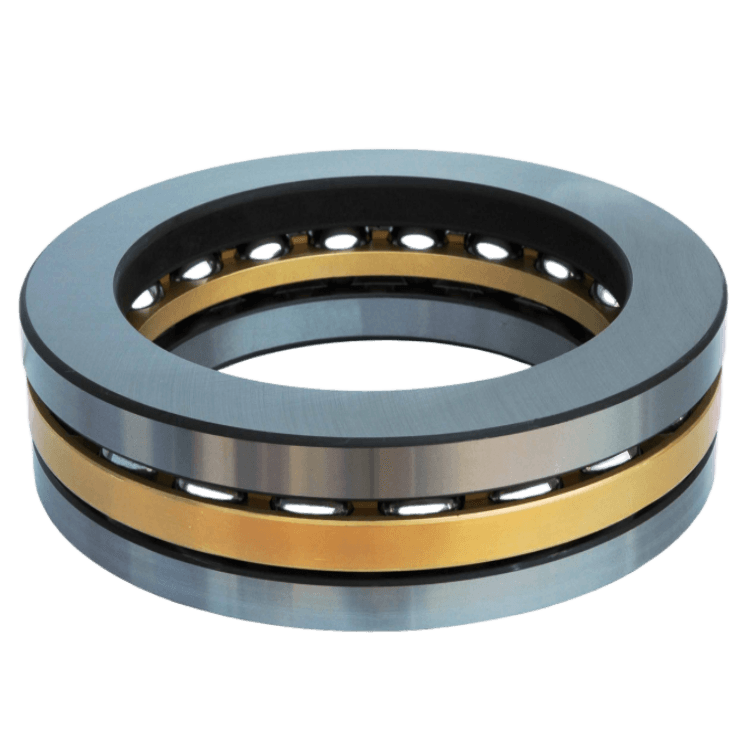

Single Direction Thrust Ball Bearings Single-direction thrust ball bearings are composed of washer-like bearing rings with raceway grooves.	Double Direction Thrust Ball Bearings In double-direction thrust ball bearings, there are three rings with the middle one (center ring) being fixed to the shaft.

 More....

To ensurethe production of top-notch bearings, WSA Bearing Company adheres strictly to S0 9001 qualitystandards at every stage of manufacturing. We go the extra mile to guarantee product excellenceby implementing rigorous control measures for all incoming raw materials, with each materialhaving its composition archived and documented. Only qualified products proceed to the nextproduction process, which includes thorough inspections using cutting-edge equipment suchas metallographic testing devices, Oxford roughness profile analvzers, fluorescent flaw detectorsuniversal microscopes,and coordinate measuring machines(CMM).

WSA bearing line includes cylindrical roller bearings (single row, double row, and four-row), deep groove ball bearings, tapered roller bearings, spherical roller and ball bearings, angular contact ball bearings (single row and double row), thrust roller and ball bearings, all kinds of split bearings and non-standard bearings, widely used in industries such as aerospace, military, railroads, commercial vehicles, industrial manufacturing, ships, machine tools, metallurgical plants, motors, and agriculture. We are dedicated to providing our customers with the highest quality products and services. Our team of experts is constantly innovating and developing to ensure that we remain at the forefront of the industry. Contact us today to learn more about our exceptional products and how we can assist you with your bearing needs.
