CARB Toroidal Roller Bearings

CARB Toroidal Roller Bearings

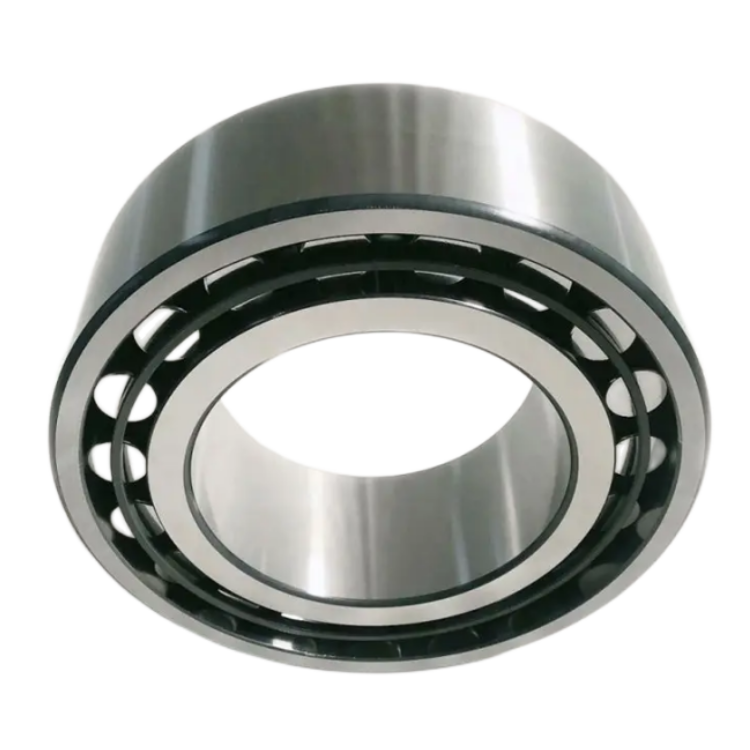

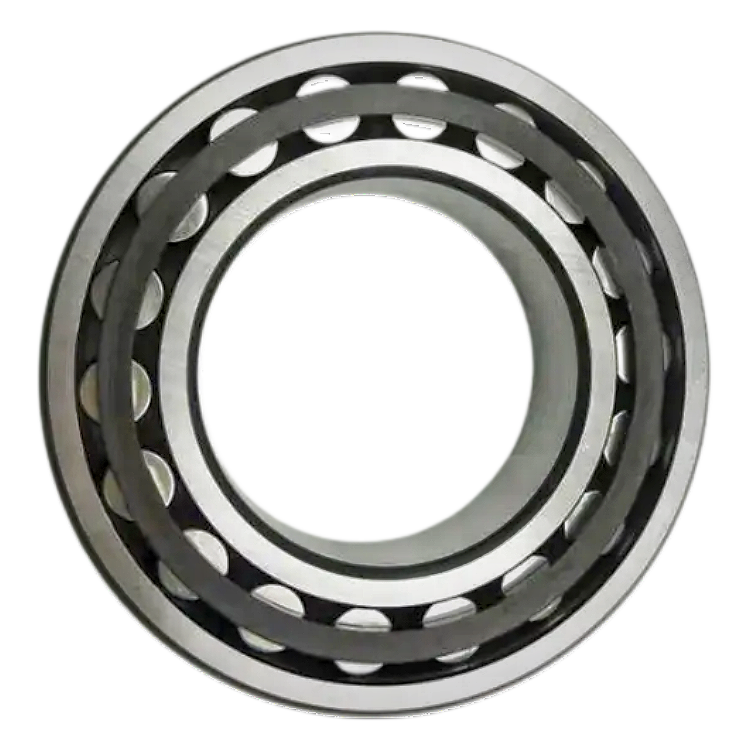

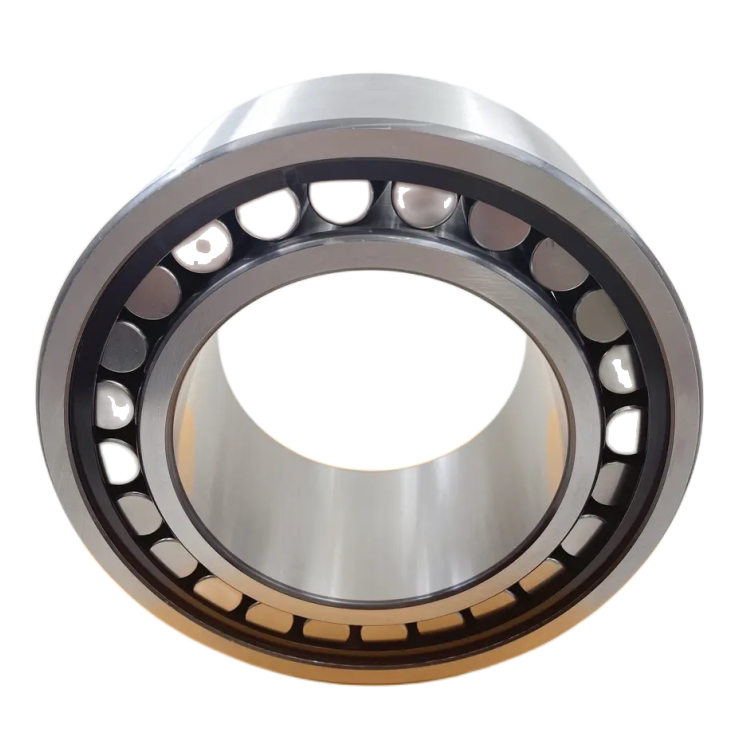

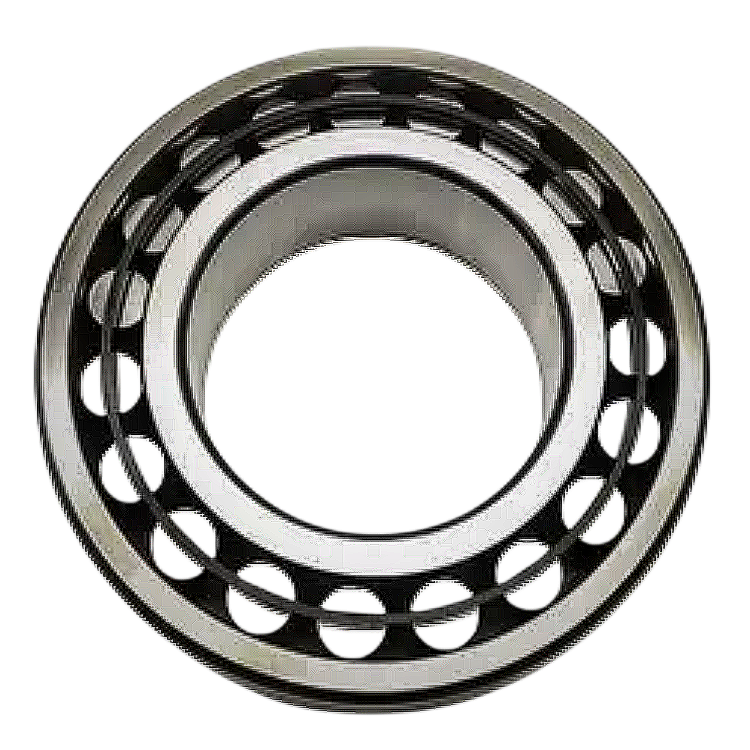

CARB Toroidal Roller Bearings are single row self-aligning roller bearings with a compact structure. These bearings have high loading capacity and accommodate exclusively radial loads, which are typically used as floating bearings. The compact structure design of the bearing assists to save both space and weight, greatly reducing manufacturing cost. CARB Toroidal Roller Bearings allow lightweight bearing configurations while provide the same or even better performance, featuring high reliability and long service life. The inner and outer rings of CARB Toroidal Roller Bearings must be fixed.

CARB toroidal roller bearings can be classified into several series based on their design features:

C31 Series: CARB roller bearings with cylindrical or tapered bore. They are used in non-locating bearing arrangements and are suitable for applications requiring axial displacement or disassembly during installation.

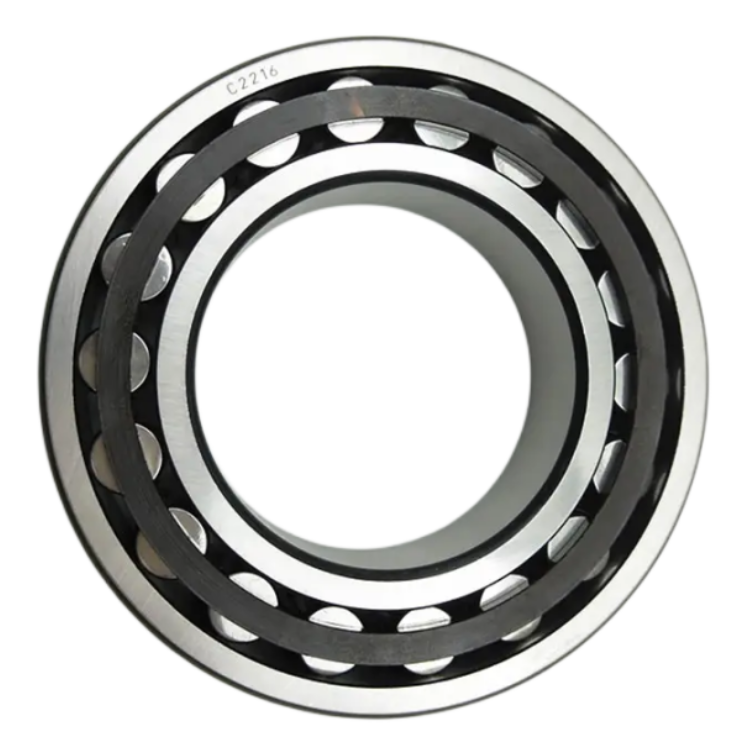

C22 Series: CARB roller bearings with a cylindrical bore. They are used in locating bearing arrangements and can be directly mounted on the shaft without axial displacement.

C30 Series: CARB roller bearings with a cylindrical bore. They offer high load-carrying capacity, particularly for larger shaft sizes. They are suitable for applications with both radial and axial loads, even at high speeds and temperatures.

C39 Series: CARB roller bearings with cylindrical or tapered bore. They are used in applications requiring axial displacement, offering large mounting clearances and adjustability to accommodate different installation conditions

C40 Series: CARB roller bearings with a tapered bore. They are used in applications requiring axial displacement, which can be achieved through axial displacement or bearing disassembly for installation.

C41 Series: CARB roller bearings with a cylindrical bore. They are used in applications without the need for axial displacement and can be directly mounted on the shaft.

In addition to these series, C40 Series and C41 Series may also have sealing designs to provide additional protection and sealing performance, preventing contaminants from entering the bearing.

These CARB toroidal roller bearing series offer flexible solutions for various applications, accommodating different load requirements, installation needs, and operating conditions.

 More....
